Ground Penetrating Radar (GPR) Systems non-destructively assess and evaluate dams and related structures.

GSSI is the world leader in the development, manufacture, and sale of ground penetrating radar (GPR). Its equipment is used all over the world to explore the subsurface of the earth and to inspect infrastructure systems non-destructively. GSSI created the first commercial GPR system over 50 years ago and continues to provide the widest range and highest quality GPR equipment available today.

Dams are engineering structures constructed for different purposes and vary in sizes, shape, and types. As such, characterization of the structure and substructures can be challenging and require multiple geophysical instruments. Ground Penetrating Radar (GPR) is an established and safe non-destructive testing technique for subsurface exploration. It provides a quick and high-resolution survey option.

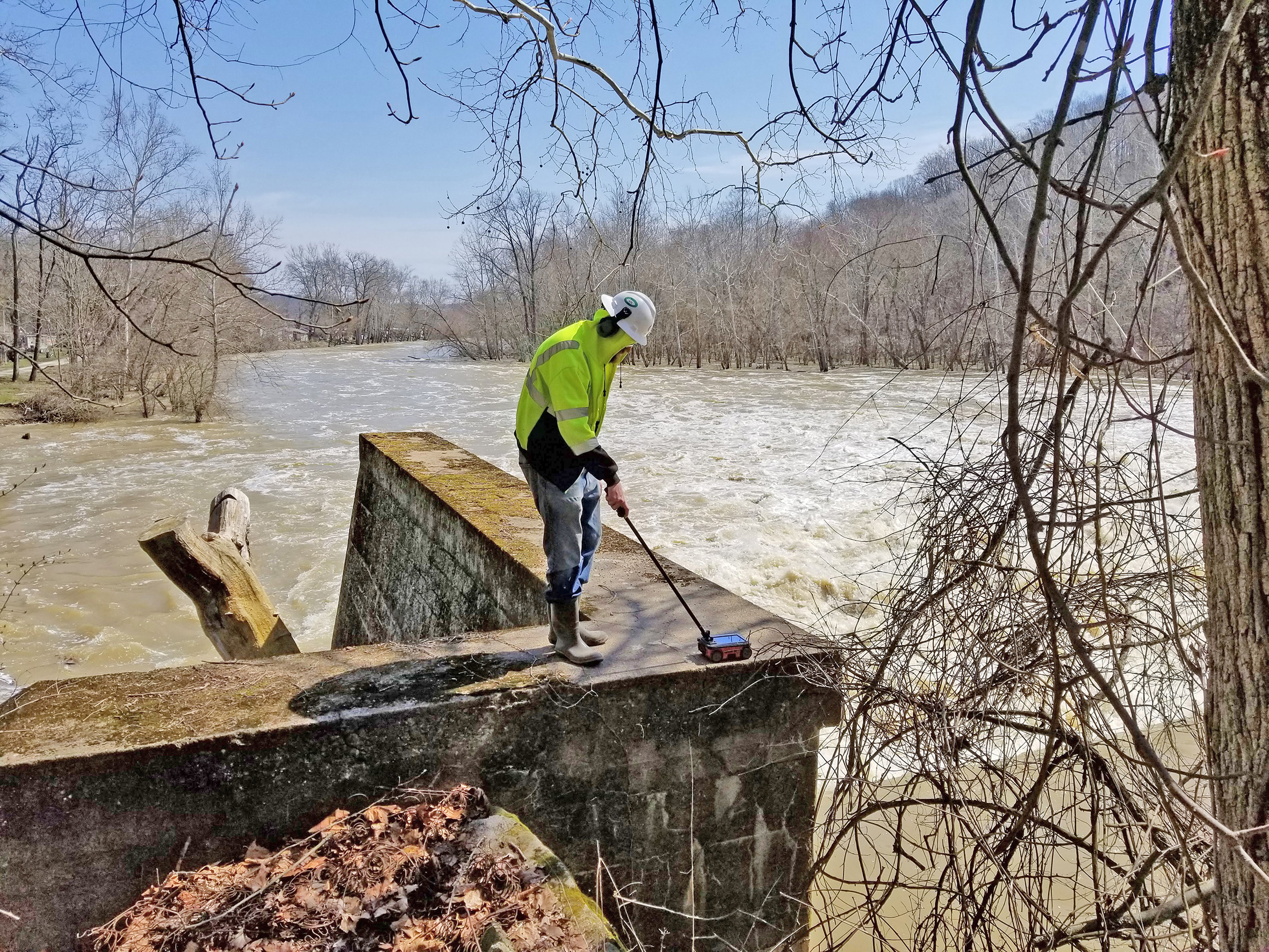

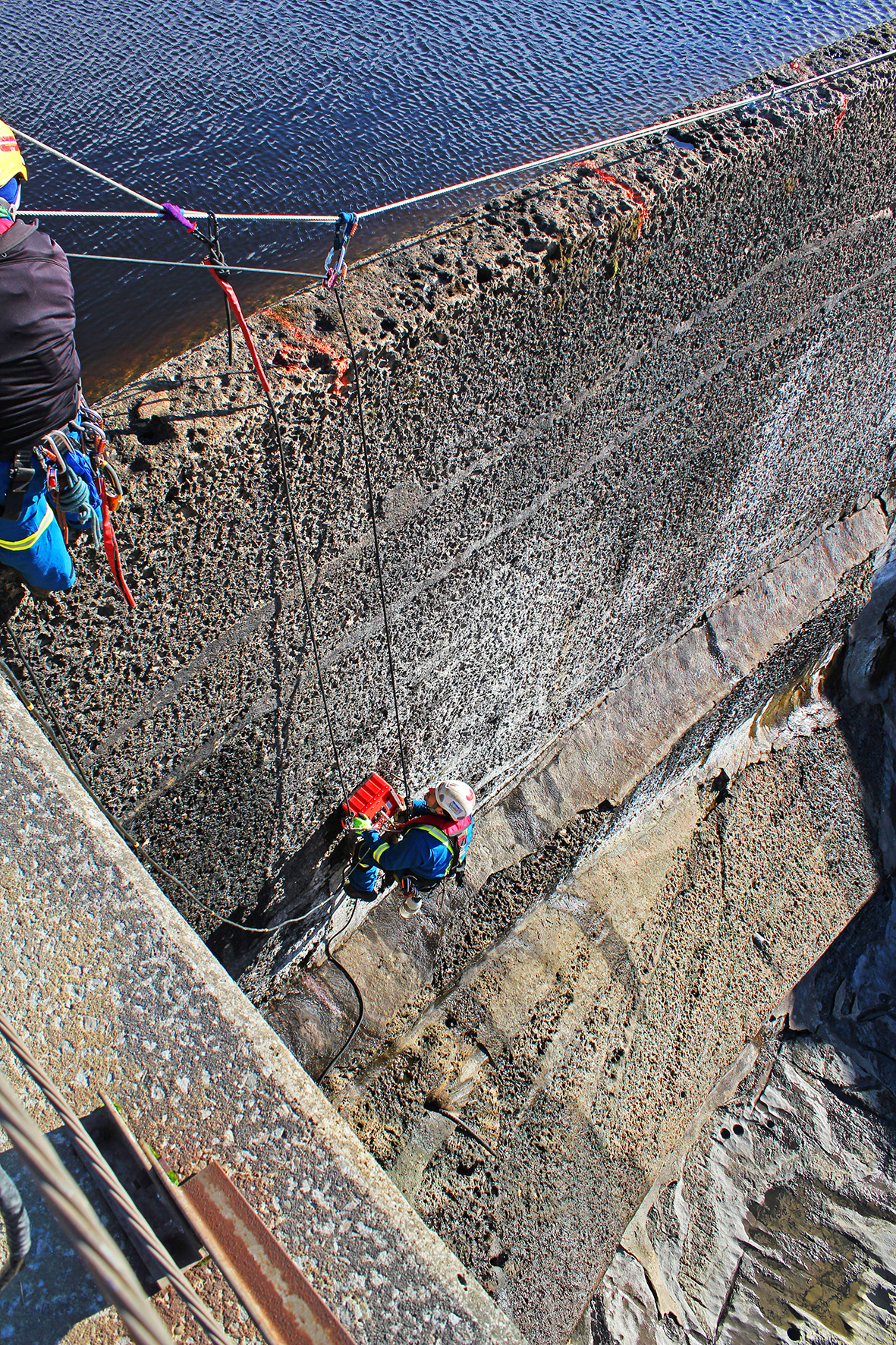

GPR used for dam investigations can provide information on sediment build up, rip rap monitoring, and leak or void detection.

Technologies

Non-destructive imaging of the subsurface and manmade materials

Characterizing Internal Structures

Detection of cavities

Concrete inspection and geotechnical investigation of dams, earthen levees and embankments

Reservoir and stilling basin examination

Latest news

Seismic Instrumentation at Ruskin Dam, British Columbia, Canada

Ruskin Dam is a concrete gravity dam on the State River in Ruskin, British Columbia, Canada. It was completed in 1930 for the primary purpose of hydroelectric power generation. In 2017, Kinemetrics supplied and installed […]

Read more...

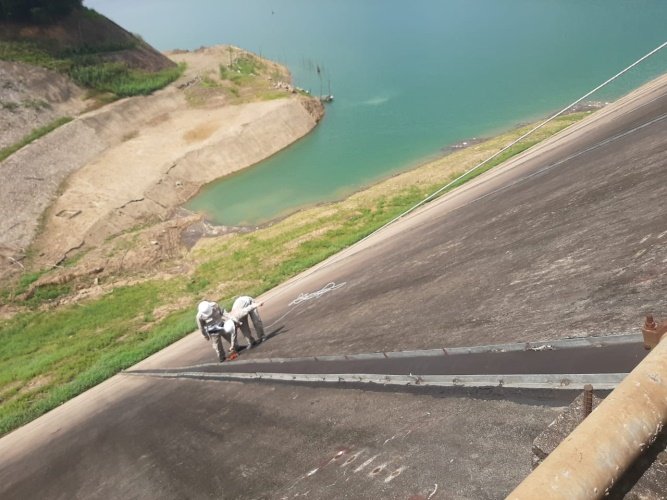

Survey of CuaDat Irrigation Dam, Vietnam

CuaDat Irrigation Dam is one of the largest irrigation dams in Vietnam. The entire concrete surface inspection survey was conducted by the Department of Geophysical Application Research – Institute of Ecology and Works Protection. Vucico […]

Read more...
Nurek Dam – at 300m (984ft) the second tallest man-made dam in the world

TJEM, Robertson Geo client in Tajikistan, purchased a logging system last year and have been using televiewers on the Nurek Dam project. The Nurek Dam is an earth-fill embankment dam on the Vakhsh River in Tajikistan. Its primary purpose […]

Read more...
